Video Borescope

Video Borescope วีดิโอบอร์สโคป

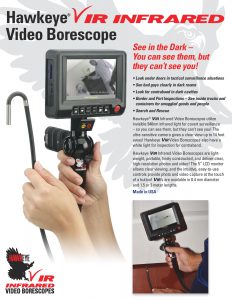

Infrared Video Borescope (VIR)

VIR Infrared Video Borescope

4-way articulation

  • VIR 084 1500 4K ; Diameter 8.4mm L1,500mm
  • VIR 084 3000 4K ; Diameter 8.4mm L3,000mm
  • 8.4mm IR Hawkeye V2 Video Borescope with 4-way articulation,
  • 70 degree field of view.
  • The V2 Video Borescope features still and video image capture, a durable 4 layer tungsten sheath and a 5” color LCD monitor.
  • The V2 Video Borescope come with a detachable Micro IR LED portable light source with intensity adjustment and a carrying case.

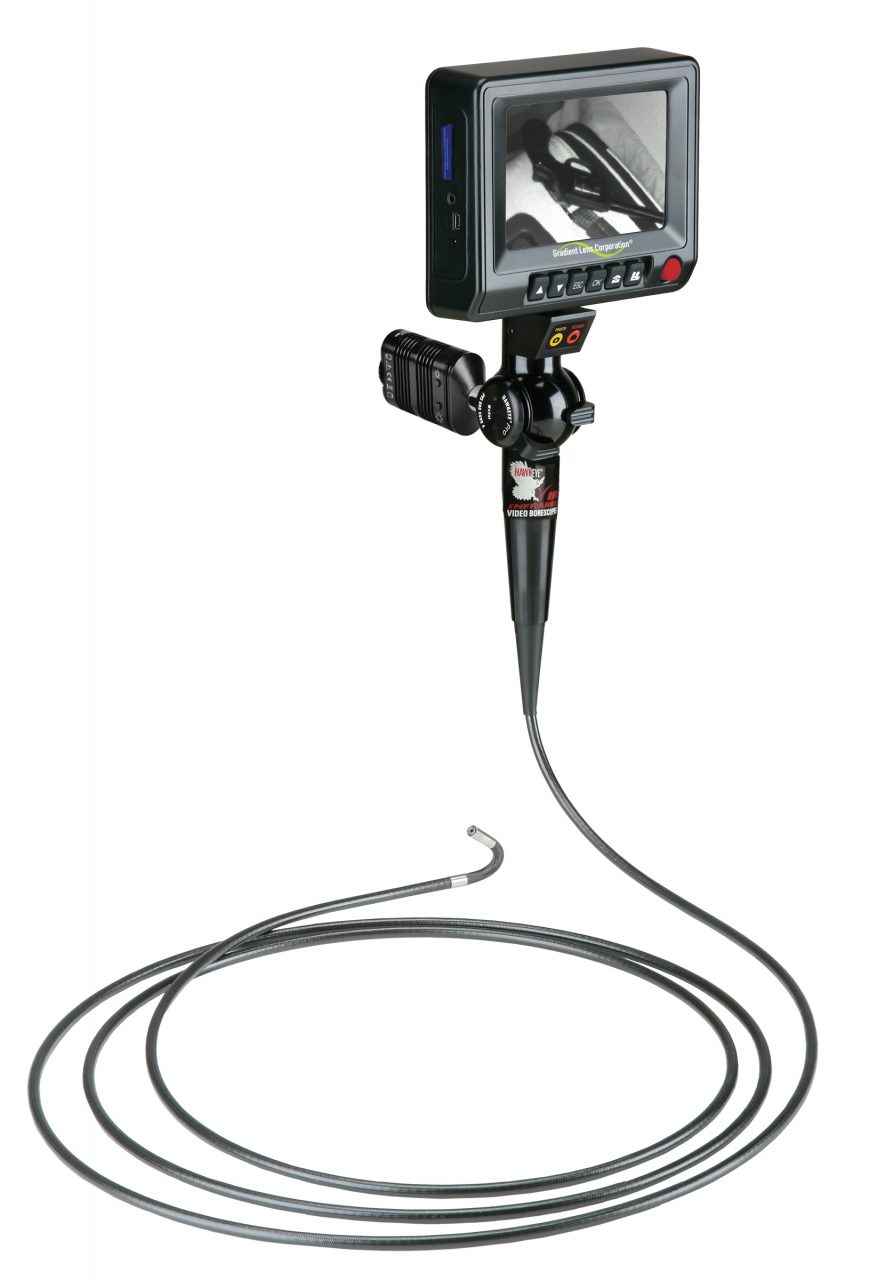

Hawkeye® Vir Video Borescope Specifications
Diameter 8.4 mm
Lengths 1.5 and 3.0 meters
Articulation Minimum 150º Up/Down, 150º Right/Left
Field-of-View 55º Diagonal
Depth-of-Field 70 mm – ∞
Direction-of-View
Sheath 2 mil Tungsten Braid, durable 4-layer construction
IR Illumination 940 nm (Invisible IR Light) Detachable Micro LED with intensity adjustment
White Illumination Visible Detachable Micro LED with intensity adjustment
Display 5″ TFT LCD
Camera 1/5” CMOS CCIQ, 640 x 480, .03 Lux Sensitivity
Interfaces Mini USB 1.1 and AV/out
Power DC 5V
Battery 2.5 hr. run time, Rechargeable Lithium
Recording Media SD Card (up to 32GB)
Digital Photo Format JPEG (640 X 480)
Video Format ASF (640 X 480), Playback with Windows Media Player
Operating Temp. Range -10C to +80C
Storage Temp. Range -30C to +60C

Every Hawkeye® VIR Infrared Video Borescope Kit Contains:

• Hawkeye® VIR Video Borescope

• Monitor Battery Charger

• Monitor Spare Battery Charger

• USB Cable

• Video Cables

• V2 Infrared LED with Charger & Batteries

• V2 White LED with Charger & Batteries

• Spare Monitor Battery

• 2 GB SD Memory Card

• Rugged Hawkeye® Carrying Case

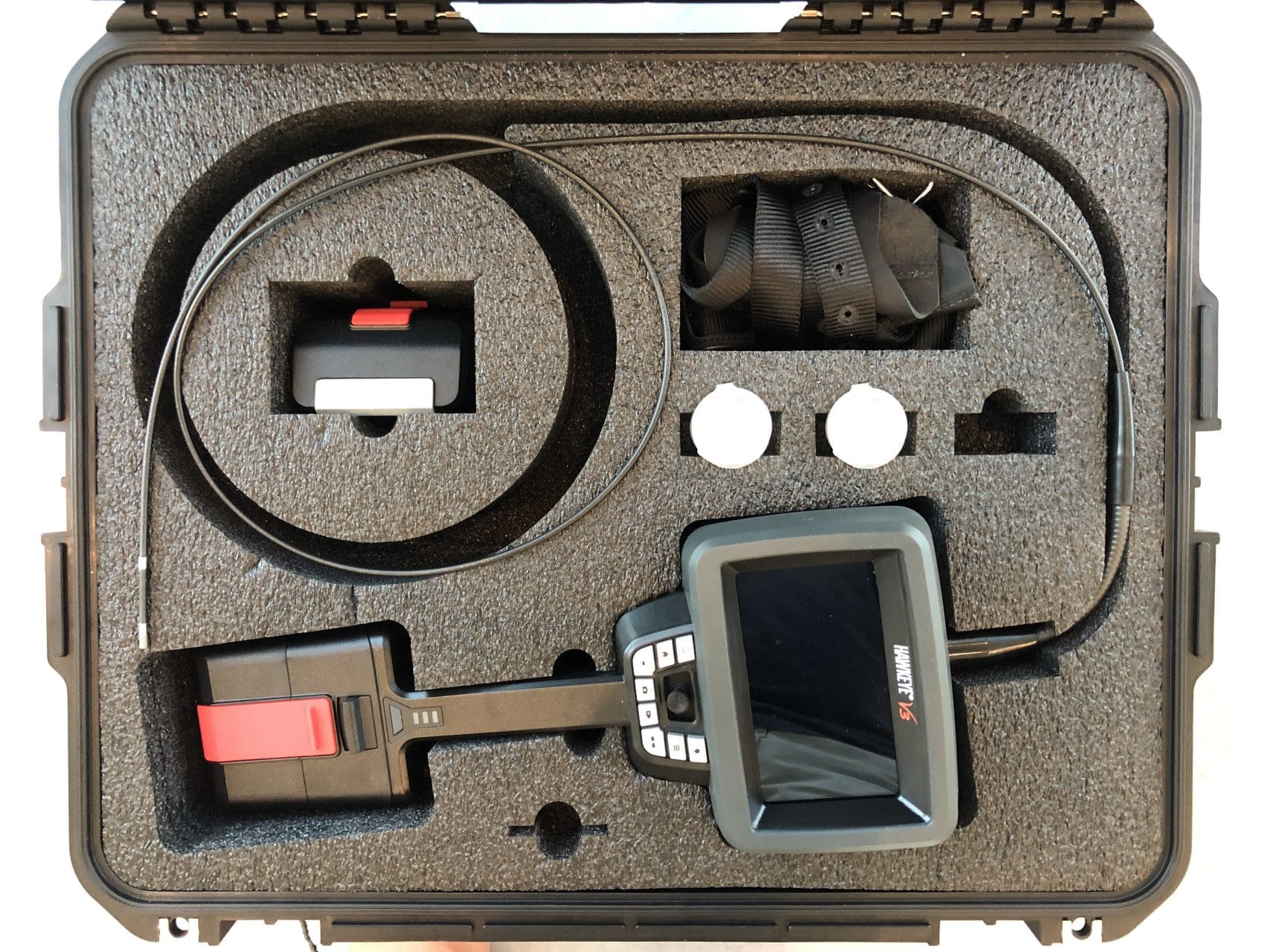

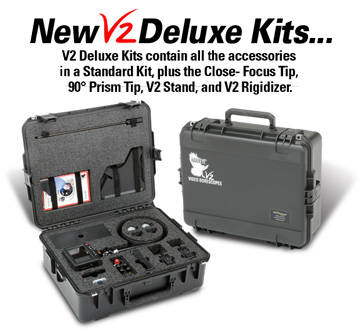

V2 Video Borescope (DELUXE KIT)

V2 Deluxe Video Borescope

2-way articulation

  • V2D 040 1500 2 ; dia.4mm L1.5m

4-way articulation

  • V2D 040 1500 4 ; dia.4mm L1.5m
  • V2D 040 3000 4 ; dia.4mm L3m
  • V2D 060 1500 4 ; dia.6mm L1.5m
  • V2D 060 3000 4 ; dia.6mm L3m
  • V2D 060 6000 4 ; dia.6mm L6m



  • new articulation mechanism, and increased the range to +/-150 deg.
  • available in diameters of 4 and 6 mm, lengths of 1.5m, 3.0m, and 6.0m.
  • Included 90-deg Prisim Tip, Close-Focus Tip, V2 Stand and V2 Rigidizer
  • The new, larger 5” LCD screen
Hawkeye® V2 Video Borescope Specifications
Diameter 4.0 or 6.0 mm
Lengths 1.5, 3.0, and 6.0 meters
Articulation 150º Up/Down, 150º Right/Left (1.5 & 3.0 meter models), 95º Up/Down, 95º Right/Left (6 meter models)
Field-of-View 70º Diagonal
Depth-of-Field 15 mm – ∞
Depth-of-Field w/CF Tip 4 mm – 22 mm
Direction-of-View 0º, 90º with optional Prism Tip
Sheath 2 mil Tungsten Braid, durable 4-layer construction
Illumination Detachable Micro LED with intensity adjustment
Display 5″ TFT LCD
Camera 400 X 400 CMOS
Interfaces Mini USB 1.1 and AV/out
Power DC 5V
Battery 2.5 hr. run time, Rechargeable Lithium
Recording Media SD Card (up to 2GB)
Digital Photo Format JPEG (640 X 480)
Video Format ASF (640 X 480), Playback with Windows Media Player
Operating Temp. Range -10C to +80C
Storage Temp. Range -30C to +60C

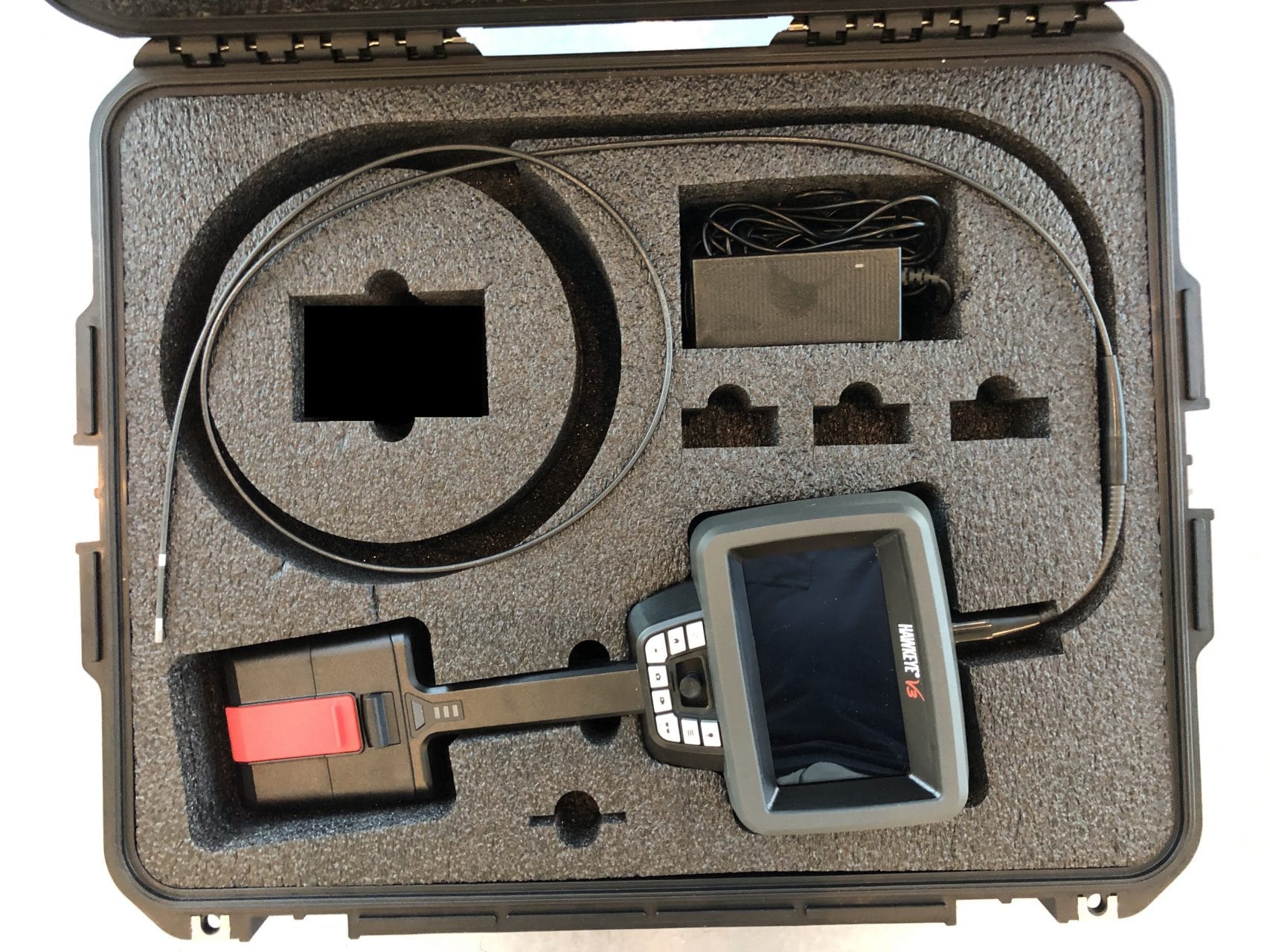

Each Hawkeye® V2 Video Borescope Kit contains:

1. Hawkeye® V2 Video Borescope
2. Monitor Battery Charger
3. Monitor Spare Battery Charger
4. USB Cable
5. Video Cables
6. V2-LED Light Source & Spare Batteries
7. V2-LED Light Source Charger & Batteries
8. Spare Monitor Battery
9. 2 GB SD Memory Card
10. Rugged Hawkeye® Carrying Case

11. 90-deg Prisim Tip
12. Close-Focus Tip
13. V2 Stand
14. V2 Rigidizer

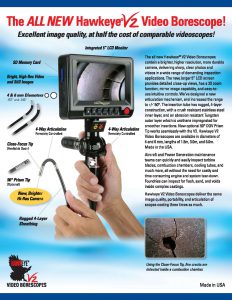

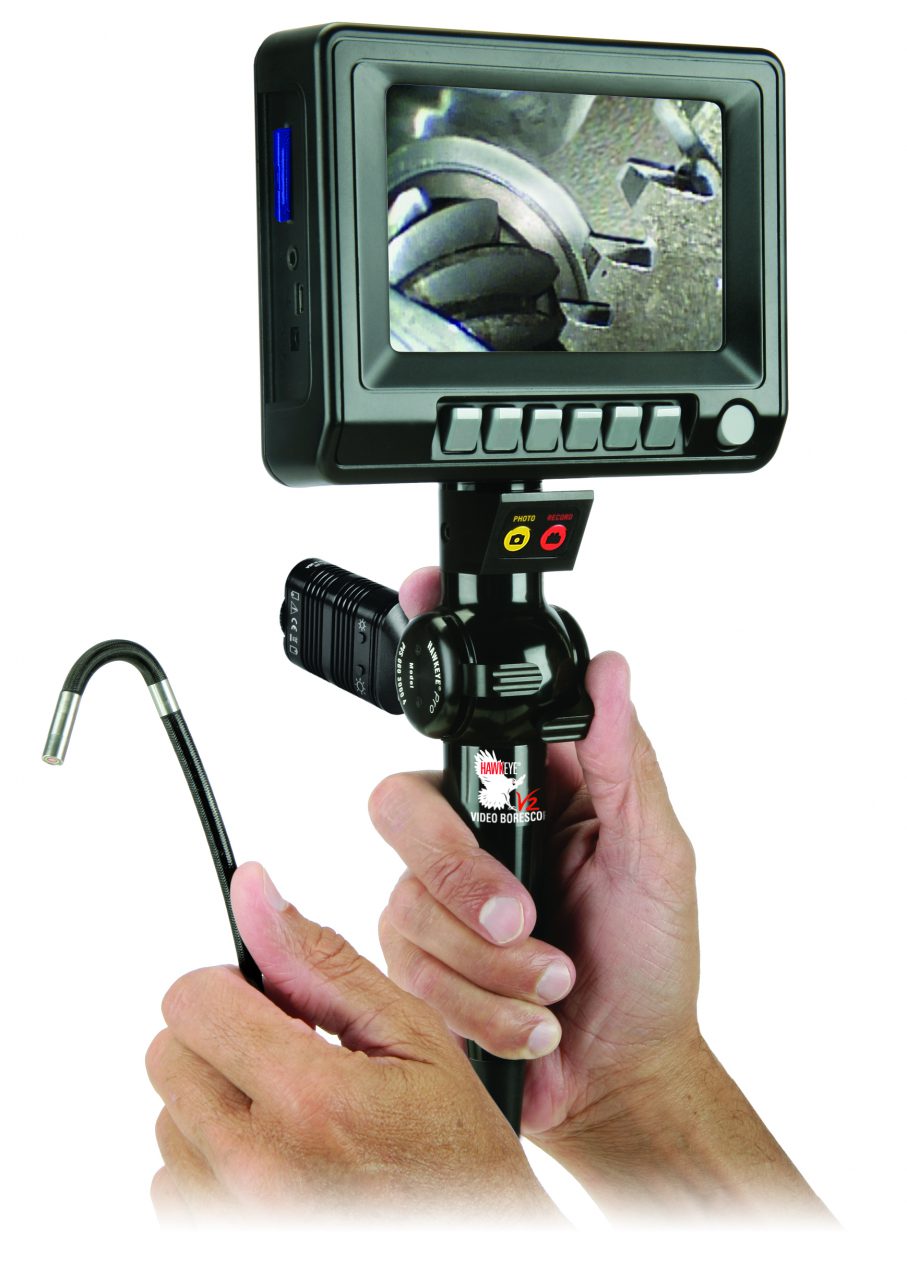

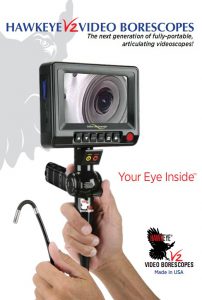

V2 Video Borescope

V2 Video Borescope

2-way articulation

  •  V2 040 1500 2 ; dia.4mm L1.5m

4-way articulation

  • V2 040 1500 4 ; dia.4mm L1.5m
  • V2 040 3000 4 ; dia.4mm L3m
  • V2 060 1500 4 ; dia.6mm L1.5m
  • V2 060 3000 4 ; dia.6mm L3m
  • V2 060 6000 4 ; dia.6mm L6m



  • The new, larger 5” LCD screen
  • new articulation mechanism, and increased the range to +/-150 deg.
  • available in diameters of 4 and 6 mm, lengths of 1.5m, 3.0m, and 6.0m.
Hawkeye® V2 Video Borescope Specifications
Diameter 4.0 or 6.0 mm
Lengths 1.5, 3.0, and 6.0 meters
Articulation 150º Up/Down, 150º Right/Left (1.5 & 3.0 meter models), 95º Up/Down, 95º Right/Left (6 meter models)
Field-of-View 70º Diagonal
Depth-of-Field 15 mm – ∞
Depth-of-Field w/CF Tip 4 mm – 22 mm
Direction-of-View 0º, 90º with optional Prism Tip
Sheath 2 mil Tungsten Braid, durable 4-layer construction
Illumination Detachable Micro LED with intensity adjustment
Display 5″ TFT LCD
Camera 400 X 400 CMOS
Interfaces Mini USB 1.1 and AV/out
Power DC 5V
Battery 2.5 hr. run time, Rechargeable Lithium
Recording Media SD Card (up to 2GB)
Digital Photo Format JPEG (640 X 480)
Video Format ASF (640 X 480), Playback with Windows Media Player
Operating Temp. Range -10C to +80C
Storage Temp. Range -30C to +60C

Each Hawkeye® V2 Video Borescope Kit contains:

1. Hawkeye® V2 Video Borescope
2. Monitor Battery Charger
3. Monitor Spare Battery Charger
4. USB Cable
5. Video Cables
6. V2-LED Light Source & Spare Batteries
7. V2-LED Light Source Charger & Batteries
8. Spare Monitor Battery
9. 2 GB SD Memory Card
10. Rugged Hawkeye® Carrying Case

CVS Video Borescope

CVS Video Borescope
  •   CVS 080 1500 ; dia. 8mm L1.5m
  •  CVS 080 3000 ; dia. 8mm L3m
  •  CVS 080 6000 ; dia. 8mm L6m
  •  CVS 080 12000 ; dia. 8mm L12m

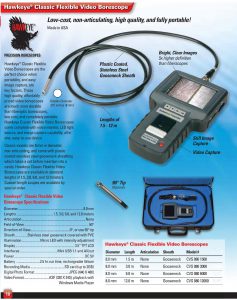

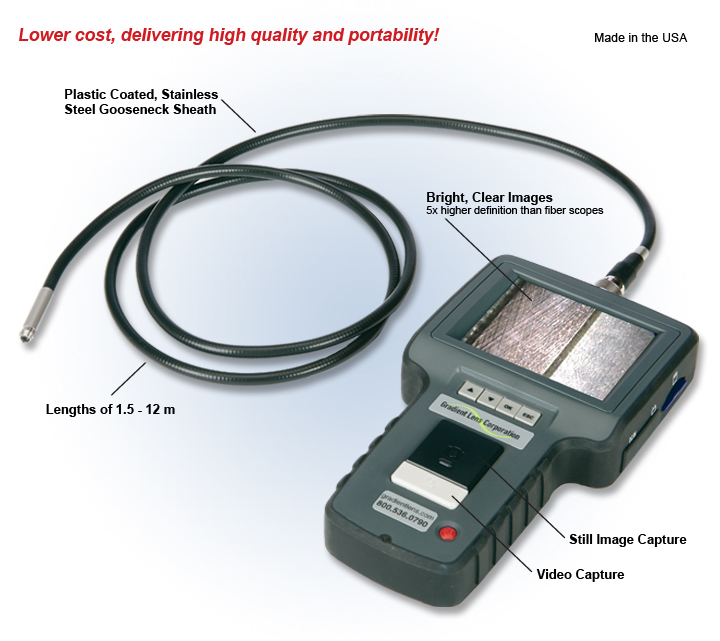

  • Hawkeye Flexible Video Borescopes come complete with video monitor,
  • LED light source,
  • image capture capability, all in one, easy-to-use device.
  • Classic models are 8 mm in diameter,
  • non-articulating,
  • come with stainless steel gooseneck sheathing.
Hawkeye® Classic Flexible Video Borescope Specifications
Diameter 8.0 mm
Lengths 1.5, 3.0, 6.0, and 12.0 meters
Articulation None
Field-of-View 50º
Direction-of-View 0º, or use 90º tip
Sheath Stainless Steel Gooseneck covered with PVC
Illumination Micro LED with intensity adjustment
Display 3.5″ TFT LCD
Interfaces Mini USB 1.1 and AV/out
Power DC 5V
Battery 2.5 hr. run time, Rechargeable Lithium
Recording Media SD Card (up to 2GB)
Digital Photo Format JPEG (640 X 480)
Video Format ASF (320 X 240), Playback with Windows Media Player



Each Hawkeye® Classic Flexible Video Borescope Kit contains:

• Hawkeye® Classic Flexible Video Borescope
• Video Monitor
• USB Cable
• Battery and Battery Charger
• 900 Tip
• 2 GB SD Memory Card
• Rugged Hawkeye® Carrying Case
• Hawkeye® Cleaning Kit

JK Series Video Borescope

Video Borescope
  • 7″ TFT LCD
  • Snap shot and video recording (640*480)
  • LED brightness adjustment
  • Zoom in and image rotation
  • USB to PC connection (optional software)
  • Long duty hour
  • AV OUT
Model
Tip Diameter (mm)
Tube Length (m)
Material of Tube
JKR-3901 Φ3.9 1 semi-rigid
JKR-3902 Φ3.9 2 semi-rigid
JKR-3903 Φ3.9 3 semi-rigid
JKS-5501 Φ5.5 1 soft-metal (semi-rigid)
JKS-5502 Φ5.5 2 soft-metal (semi-rigid)
JKS-5503 Φ5.5 3 soft-metal (semi-rigid)
JKS-5505 Φ5.5 5 soft-metal
JKS-5510 Φ5.5 10 soft-metal
JKS-5530 Φ5.5 30 soft-metal
JKR-4901S Φ4.9 (dual-cameras quick switch) 1 semi-rigid
JKR-4902S Φ4.9 (dual-cameras quick switch) 2 soft-metal
JKR-4903S Φ4.9 (dual-cameras quick switch) 3 semi-rigid
JKVS-5401
Φ5.4 (VGA Probe, Short Tip)
1
Stainless steel (soft-metal)
JKVS-5501N
Φ5.5 (VGA Probe, Near Focus)
1
soft-metal
JKVR-5501
Φ5.5 (VGA probe)
1
semi-rigid
JKVS-5501
Φ5.5 (VGA probe)
1
soft-metal
JKVS-5502
Φ5.5 (VGA probe)
2 soft-metal
JKVS-5503
Φ5.5 (VGA probe)
3 soft-metal
JKVS-5505 Φ5.5 (VGA probe) 5 soft-metal
JKVS-45022
Φ4.5 (VGA probe, 2 way short tip articulation)
1.5 Outer braided Stainless steel (soft-metal)
JKVS-45032  Φ4.5 (VGA probe, 2 way short tip – articulation) 3 Outer braided Stainless steel (soft-metal)
JKVS-60011
Φ6 (VGA probe, 1 way short tip- articulation)
1 Outer braided Stainless steel (soft-metal)
JKVS-60012 Φ6 (VGA, 2 way articulation) 1 soft-metal
JKVS-60022 Φ6 (VGA, 2 way articulation) 2 soft-metal
JKVS-60032 Φ6 (VGA, 2 way articulation) 3 soft-metal
 JKVS-60014 Φ6 (VGA, 360° articulation) 1 Outer braided Stainless steel (soft-metal)
 JKVS-60034 Φ6 (VGA, 360° articulation) 3 Outer braided Stainless steel (soft-metal)
JKS-2222M Φ6(pipe), Φ22(camera head), Count Meter 22 soft-metal
JKS-2830M Φ6(pipe), Φ28(camera head), Count Meter 30 soft-metal

Main Console System(Screen)

LCD 7″ LCD ( 800 x 480 )
Snapshot 640 * 480, JPEG
Recording 640 * 480 , MPEG4 (with audio)
Storage 4GB SD card (up to 32GB)
USB Live view mode (optional software) / Mass storage mode
AV output NTSC/PAL
Audio input / oupput Built-in microphone / Headphone Jack
Brightness Adjust 10 levels
Dust & Water Proof IP57 standard
Shock Proof 1 meter drop test
Working temperature -10 ~ 60
Storage temperature -20 ~ 80
Battery Built-in Li-polymer Battery, Capacity: 6 hrs, Charge time: 3 hrs
Languages 27 Languages: English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian / Bulgarian / Turkish / Swedish / Finnish / Norwegian / Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek
Dimension 240 * 154 * 47mm
Weight 1.18 kg ( 2.6 lb)

360° Articulation VGA Probe

Model JKVS-60014 JKVS-60034
Probe Head Diameter Φ6.0mm (W/O Lock Ring)
Probe Head Length 24mm
Tube Length 1m 3m
Articulation Angle Full ways ≥ 110°
Tube Material Outer Braided Stainless Steel
Probe Head Material Stainless Steel
Light Source Front / Side
F.O.V 87°
D.O.F. 10 mm ~ 100 mm
Botton Boost / Rotate / Particle Free
Articulation Shaft Lock Left – open / Right – lock
Working Temperature -10°C ~ 60°C
StorageTemperature 10°C ~ 60°C
Resolution VGA (640 x 480)



VGA Probe

Model JKVS-5501 JKVS-5502 JKVS-5503 JKVS-5505
Camera Head Length 20mm
Camera Head Material Stainless Steel
Tube Length 1m 2m 3m 5m
Tube Diameter Φ5.5mm
Tube Material Soft-metal (1m~5m) / Semi-rigid (1m)
Sensor Resolution VGA (640 x 480)
LED Forward: 224mcd * 4 LED / Side: 224mcd *2 LED
Brightness Adjustable by Main Console (Display)
D.O.F. 1~6cm
F.O.V. 60.7 Degree (Diagonal)
Working Temperature -20ºC~65ºC
Waterproof IP67
Option Near Focus Probe for Option (1m)

Pipe Inspection Probe

Model JKS-2222M JKS-2830M
Pipe Diameter Φ 6mm
Camera Diameter Φ22mm Φ28mm
Applicable Pipe 40mm-70mm 50mm-100mm
Goose neck 27cm
Pipe Length 22M 30M
Resolution 640*480
Camera Material Stainless Steel
Depth of Field 30mm – 100mm 10mm
Field of View 62.5°(Diagonal) 150.8°(Diagonal)
Interchangeable Camera Head No Yes
Illumination High Brightness 8 White Led (3000 lux)
Waterproof Probe-IP68 , Reel-IP65
Working Temp. -10°C~60°C
Operating Hour 3 Hours
Material Fiber Glass
Flexibility Continuously 90° sharp turn in Φ40mm/ Φ50mm Water Pipe
Whole Reel Diameter 30cm
Standard Package Standard Blow Molded Case 12KG/64*29*46(CM)
Standard Accessories Centering Brush (Diameter: Φ100mm, L:150mm), Pipe Meter (Length Count)
Optional Accessories for Φ28mm camera head only Centering Metal Ring, Diameter: Φ50mm, L:36mm
Centering Brush, Diameter:Φ150mm, L:150mm

JF Series Video Borescope

Video Borescope
  • 3.5″ TFT LCD
  • Snap shot and video recording
  • LED brightness adjustment
  • Zoom in and Mirror
  • USB to PC connection (optional software)
  • Long duty hour
  • AV OUT
Model
Tip Diameter (mm)
Tube Length (m)
Material of Tube
JFR-3901 Φ3.9 1 semi-rigid
JFR-3902 Φ3.9 2 semi-rigid
JFR-3903 Φ3.9 3 semi-rigid
JFS-5501 Φ5.5 1 soft-metal (semi-rigid)
JFS-5502 Φ5.5 2 soft-metal (semi-rigid)
JFS-5503 Φ5.5 3 soft-metal (semi-rigid)
JFS-5505 Φ5.5 5 soft-metal
JFS-5510 Φ5.5 10 soft-metal
JFS-5530 Φ5.5 30 soft-metal
JFR-4901S Φ4.9 (dual-cameras quick switch) 1 semi-rigid
JFR-4902S Φ4.9 (dual-cameras quick switch) 2 soft-metal
JFR-4903S Φ4.9 (dual-cameras quick switch) 3 semi-rigid
JFS-60012
Φ6 ( 2 way articulation)
1
soft-metal
JFS-60022
Φ6 ( 2 way articulation)
2
soft-metal
JFS-60032
Φ6 ( 2 way articulation)
3
soft-metal
JFVS-5401
Φ5.4 (VGA probe, short tip)
1 Outer braided Stainless steel (soft-metal)
JFVS-5501
Φ5.5 (VGA probe)
1 soft-metal
JFVS-5502
Φ5.5 (VGA probe)
2 soft-metal
JFVS-5503 Φ5.5 (VGA probe) 3 soft-metal
JFVS-5505 Φ5.5 (VGA probe) 5 soft-metal
JFVS-60011
Φ6 (VGA, 1 way short tip articulation)
1
Outer braided Stainless steel (soft-metal)
JFVS-60012 Φ6 (VGA, 2 way articulation) 1 soft-metal
JFVS-60022 Φ6 (VGA, 2 way articulation) 2 soft-metal
JFVS-60032 Φ6 (VGA, 2 way articulation) 3 soft-metal
JFVS-45022  Φ4.5 (VGA, 2 way short tip articulation) 1.5 Outer braided Stainless steel (soft-metal)
JFVS-45032  Φ4.5 (VGA, 2 way short tip articulation) 3 Outer braided Stainless steel (soft-metal)
JGS-2222 Φ6(pipe), Φ22(camera head) 22 soft-metal
JGS-2822 Φ6(pipe), Φ28(camera head) 28 soft-metal
JGS-2830 Φ6(pipe), Φ28(camera head) 30 soft-metal



Main Console System (Screen)

LCD 3.5″ TFT LCD
Storage 8GB SD card (up to 32GB)
USB USB 2.0 / AV Out
Video Out Format NTSC/PAL
Comperssion Format MPGE4
Still Image Storage Format JPGE (640X480)
Videol Recording Format AVI (320X240)
Frame Rate ~30 fps
S/N Ratio 42dB or more
Exposure Automatic
White Balance Fix
Languages 27 Languages: English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian / Bulgarian / Turkish / Swedish / Finnish / Norwegian / Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek
Dimension 117.5 * 207 * 37mm
Package Size & Weight

(BMC with outer gift carton)

L55*W9.5H32CM, NW:2.8KGS, GW:3.2KGS(JFS-5501)

L42.5*W18*H40CM, GW:4KGS(JFS-60012)



Articulation Probes Comparison

Model JIVS-60012 JiVS-60011 JIVS-45022 JIS-60012 JIS-60014
Probe Length 1m (2m /3m for option) 1m 1.5m (3m for option) 1m (2m /3m for option) 1m (3m for option)
Camera Diameter 6mm 6mm 4.5mm 6mm 6mm
Camera Head Length 23mm 10mm 13mm 23mm 24mm
Resolution VGA(640*480 ) VGA(640*480 ) VGA(640*480 ) QVGA(320*240 ) VGA(640*480 )
Probe Material Stainless steel with outer PVC Outer Braided Stainless Steel Outer Braided Stainless Steel Stainless steel with outer PVC Outer Braided Stainless Steel
Articulation Two way One way Two way Two way Full way
Max Articulation Angle Right: 155° / Left: 155° One way: 180° Right: 180° / Left: 180° Right: 155° / Left: 155° >110°
F.O.V. (Diagonal) 87° 87° 90° 56° 87°
D.O.F. 1cm~10cm 1cm~6cm 1cm~10cm 1cm~6cm 1cm~10cm
Articulation Radius
(at angle 90° )
50mm 30mm 35mm 48mm 55mm
Articulation Radius
(at max angle)
45mm 18mm 27mm 43mm 50mm
Side View Mirror Yes (70°/90°/110°available) No No No Yes (70°/90°/110°available)
Functions Light Boost / Image Rotation / Side LED Light Boost / Image Rotation Light Boost / Image Rotation No Image Rotation / Side LED

JGS Series Pipe Video Borescope

Video Borescope
  • The compact and handy inspection concept offers a high degree of flexibility in numerous areas of application where fast
    and uncomplicated inspection, analysis and documentation of pipes and cavities are called for – also in locations that are
    difficult to access.
Model JGS-2222M JGS-2830M JGS-2810
Pipe Diameter Φ6mm
Camera Diameter Φ22mm Φ28mm
Applicable Pipe 40mm – 70mm 50mm – 100mm
Goose neck 27cm
Pipe Length 22m 30m 10m
Resolution 640 * 480
Camera Material Stainless steel
Depth of Field 30mm – 100mm 10mm – ∞
Field of View 62.5°(Diagonal) 150.8°(Diagonal)
Illumination High Brightness 8 White Led (3000 lux)
Waterproof Probe-IP68 , Reel-IP65
Interchangeable Head No Yes No
Working Temp -10°C~60°C
Operating Hour 3 Hours
Material Fiber Glass
Flexibility Continuously 90° sharp turn in Φ40mm/Φ50mm Water Pipe
Whole Reel Diameter Reel:30cm Plate:45cm
Standard Package Standard Carton Package
5KG/ 38.5*26*44 (cm)
Carton Package
5KG/50*13*61(cm)



System Dimension 117.5*207*37mm
Power Battery rechargeable Li-Polymer battery 3.7V
Display 3.5″TFT LCD QGVA
Interface USB 2.0 / AV Out
Video Out Format NTSC & PAL
Recording Medium 8GB SD Memory Card
Still Image Format JPEG (640*480)
Video Format AVI 320*240
Frame Rate ~30 fps
Language English and other 26 Languages

Camera Head

‧ Interchangeable Camera Head ‧ IP 68 Waterproof ‧Bright & Clear Image ‧ 640*480 Resolution ‧ Stainless Steel
‧ 8 High Brightness LED (3000 lux)

JM Series Wireless Video Borescope

Video Borescope

TWO HAND MODE You need not heading up or down in an uncomfortable position when checking some position  that higher or lower than our eye level. You can hold the console in a perfect height even though checking the undercarriage or the air-conditioner.

ONE HAND MODE In some special working environment you need to remove the obstacle during manipulating the insert tube. At this moment, you can place the separable console on a stable platform, WICP can “give you a hand” then.
